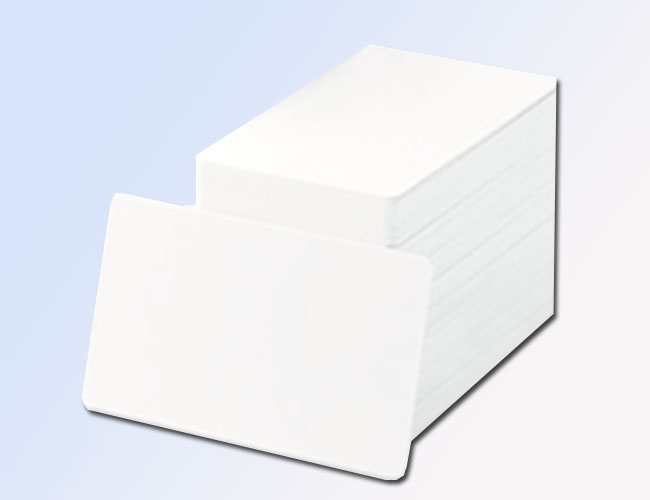

کارت rfid 125khz

کارت rfid 125khz

قیمت: 16,000,000 ریال

بسته 200عددی TK4100


کارت rfid 125khz



rfid 125khz ، کارت های هوشمندی هستند که دارای یک شماره سریال (UNIQUE) غیر قابل تغییر هستند و تکنولوژی آن ها با استفاده از امواج RF می باشد.

کارت R/O 125k از نوع کارت های بدون تماس contact less هستند که از چند لایه پلاستیک به هم فشرده شده تشکیل شده اند ، در قسمت لایه‌ های میانی کارت چیپی وجود دارد که حافظه آن فقط خواندنی (Read only) است و قابلیت نوشتن و ذخیره سازی اطلاعات را ندارد و می توان گفت که حافظه کارت R/O یکبار قابل ذخیره سازی است و فقط می توانند به طور متوالی اطلاعات ذخیره شده را بخوانند ، کارت های R/O 125k یک کد ۱۰ رقمی ثابت و منحصر به فرد (یکتا) دارند.

برای استفاده از کارت های R/O نیازی نیست که از داخل کیف بیرون آورده شوند و فقط باید آنها را به دستگاه کارت خوان نزدیک کرد تا شماره سریال آن توسط دستگاه خوانده شود. انرژی مورد نیاز برای فعال شدن تراشه به دو صورت تامین میشود یکی از طریق باطری مینیاتوری تعبیه شده روی کارت یا از طریق امواج میکروویو که به وسیله دستگاه کارت خوان مخابره میشود و توسط کارت دریافت خواهد شد.

در حال حاضر حدود شانزده نوع کارت غیر تماسی با فنآوری های مختلف ، در بازار وجود دارند.



پارامترهای تراشه
فرکانس ۱۲۵k
حالت خواندن
حافظه
پارامترهای کارت
ابعاد ۸۵٫۶ × ۵۴ × ۰٫۸ میلی متر
سطح براق
درجه حرارت -۲۵ ~ ۵۰ ‘C
وزن ۶ گرم
بسنه بندی ۲۰۰ عددی





مشخصات کارت های بدون تماس R/O :

ابعاد کارت  RO-125  ۸.۵*۵.۴ سانتی متر با فرکانس ۱۲۵ کیلو هرتز (۱۲۵kHz ± ۶ kHz) می باشد و یک عدد و کد ثابت ۱۰ رقمی در داخل کارت به صورت ثابت و غیر تکراری در حافظه کارت وجود دارد که با استفاده از ریدر کارت Read Only قابل خواندن می باشد و کارت R/O قابلیت این را دارد از فاصله ۱۰ سانتی متری کد کارت خوانده شود و آنتن کارت های ۱۲۵K به صورت گرد یا دایره ای شکل می باشد.

به علت اینکه کارت R/O 125K نیاز به ارتباط مستقیم فیزیکی با هیچ نوع سخت افزاری ندارند ، کارت های R/O را غیر تماسی می نامند و با اینگونه کارت ها و با استفاده از فرکانس رادیویی و بدون نیاز به خروج کارت از کیف دارنده آن ، اطلاعات مورد نیاز منتقل می شود.

موارد استفاده از کارت های بدون تماس R/O : کارت های پرسنلی ، کارت های شناسایی ، کارت تخفیف و …



ویژگی و مشخصات کارت RFID :

:: نام محصول : RFID CARD

:: استاندارد : EM4200,EM4100

:: فرکانس کاری : 125khz

:: جنس : پلاستیک، PVC

:: سازگاری با تمام دستگاه های شناسه خوان

:: انتقال بدون تماس داده ها، فقط قابلیت خواندن را دارد.

:: با یک شماره ده رقمی منحصر به فرد از پیش برنامه ریزی شده است.

:: رنگ : سفید

:: دمای کاری : 40- درجه سانتی گراد الی 85+ درجه سانتی گراد

:: ضد آب

:: محدوده خواندن کارت : 5mm – 12mm

:: ابعاد : 8.5cm * 5.5cm * 0.1cm

:: وزن : 6g





*برای اطلاع از قیمت کارت بدون تماس ۱۲۵K-R/O با کارشناس فروش تماس حاصل فرمایید.





125K-R / O contactless card or Contacless card

Contactless r / o cards are smart cards that have an unchangeable serial number (UNIQUE) and their technology uses RF waves

The 125k ro card is a contact less contact type card that is composed of several layers of compressed plastic. In the middle layers, there is a chip card whose memory is read only and the ability to write and store information. Does not have. It can be said that the R / o card memory can be stored once and they can only read the stored information continuously. The 125k RO cards have a fixed (unique) 10-digit code

To use ro cards, you do not need to take them out of the bag and you just need to bring them closer to the card reader so that the serial number is read by the device. The energy required to activate the chip is supplied in two ways, one through a miniature battery built into the card or through microwave waves that are transmitted by the card reader and received by the card

There are currently about sixteen types of contactless cards on the market with different technologies

Chip parameters
Frequency 125k
Reading mode
Memory -
Card parameters
Dimensions 85.6.54.0.0.8 mm
Glossy surface
Temperature -25 ~ 50 ‘C
Weight 6 grams
200-digit resolution
RFID

A set of technologies that use radio waves to automatically detect people and objects is called RFID. Various methods are used to identify people and objects. Storing a serial number attributed to a person or object within a microchip to which an antenna is attached is one of the most common methods of automatic identification

The combination of chip and antenna is called an RFID tag or RFID automatic transmitter. With the help of a built-in antenna, the chip sends the necessary information to identify a desired item to a code reader. The code reader converts the radio waves returned from the RFID tag into digital information to allow the computer to send and process data.

Specifications of non-contact R / O cards:

The dimensions of the RO-125 card are 8.5 x 5.4 cm with a frequency of 125 kHz (125 kHz ± 6 kHz). There is a fixed 10-digit fixed number and code inside the card in the card's memory, which can be read using the Read Only card reader. The R / O card has the ability to read the card code from a distance of 10 cm. The antenna of 125K cards is round or circular

Because the RO 125K does not require direct physical contact with any hardware, r / o cards are called non-contact. With such cards and using the radio frequency and without the need to remove the card from the bag holder, the required information is transmitted.

Uses of r / o contactless cards: personal cards, ID cards, discount cards and



 For information on the price of the 125K-R / O contactless card, please contact the sales expert
